Intel® 13th/ 12th-Gen Core™ in-vehicle computer with 4x M12/ 4x RJ45 / 8x RJ45 PoE+ ports

  • Supports Intel® 13th/12th-Gen Core™ 24C/ 32T 35W/ 65W LGA1700 CPU
  • 4x or 8x 802.3at PoE+ ports via M12 or RJ45 connectors
  • 1x USB 3.2 Gen2x2 type-C and 8x USB 3.2/ 2.0 type-A ports
  • On-board isolated CAN bus for in-vehicle communication
  • 4-CH isolated DI and 4-CH isolated DO
  • M.2 Gen4 x4 NVMe SSD slot
  • 8V to 48V wide-range DC input with built-in ignition power control
  • 2x SATA ports with 1x hot-swappable HDD tray, supporting RAID 0/1
  • E-Mark certified and EN 50155 EMC compliant


Intel® 13th/ 12th-Gen Core™ in-vehicle computer with 4x M12/ 4x RJ45 / 8x RJ45 PoE+ ports

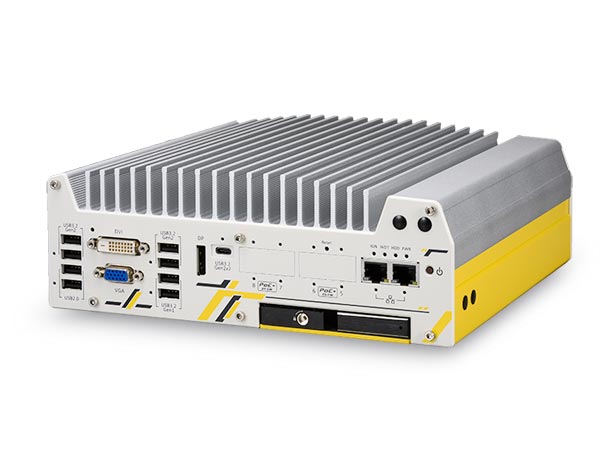

Nuvo-9100VTC is Neousys’ latest rugged in-vehicle controller based on Intel® 13th/ 12th-Gen Core™ processors. Benefiting from cutting-edge Intel® 7 photolithography, the latest Core™ desktop processors come with up to 24 cores/ 32 threads, offering an incredible boost of computational performance. Combining DDR5 memory bandwidth throughput and PCIe Gen4 NVMe high-speed disk read/write, users can expect an overall system performance improvement of up to 1.8x when compared to previous 10th or 11th-Gen platforms.

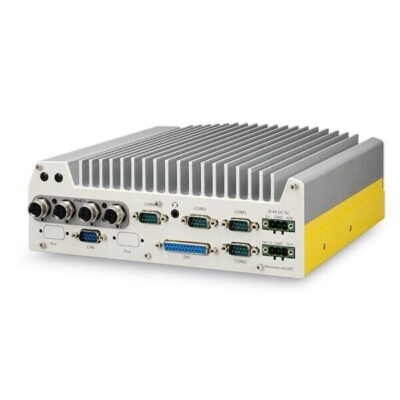

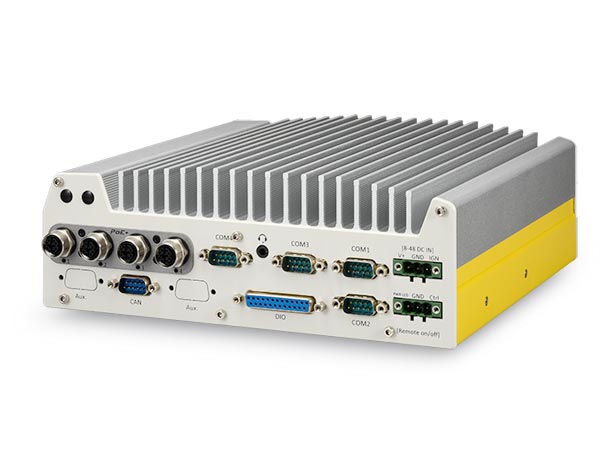

Nuvo-9100VTC provides flexibility to support a range of peripherals and connections. It has 2.5Gb and 1Gb Ethernet ports, and four or eight 802.3at PoE+ ports to supply 25W of power to connected devices such as IP cameras. The system also has x-coded M12 connectors and screw-lock mechanisms on the computer I/Os like Gigabit Ethernet, USB 3.2 Gen1 and USB 3.2 Gen2 to guarantee extreme rugged connectivity in shock/ vibration environments. Wireless connectivity is essential for modern-day in-vehicle applications, and you can simultaneously utilize two M.2 and three mini-PCIe sockets with corresponding wireless modules for 5G/ 4G, WiFi, GPS, and CAN module for communication.

On top of all that, Nuvo-9100VTC also features an isolated CAN bus for in-vehicle communication, isolated DIO for sensor/ actuator control, 8V to 48V wide-range DC input with ignition power control, and is E-Mark certified, making it the perfect solution with extraordinary reliability for various in-vehicle applications.
