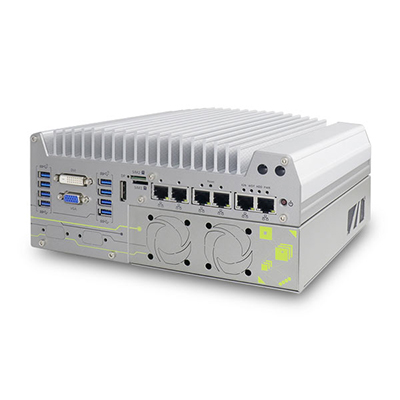

Nuvo-7160GC

Nuvo-7160GC is a ruggedized GPU-aided edge computing platform designed for modern machine learning applications such as autonomous driving, facial recognition and machine vision. It supports up to a 120W GPU, delivering 4~6 TFLOPS computing power for inference, as well as Intel® 8th-Gen Coffee Lake Core™ 6-core/ 12-thread CPU, offering up to 50% CPU performance enhancement over previous generations.

Thanks to Neousys’ patented Cassette design and ingenious ventilation mechanism, Nuvo-7160GC can effectively dissipate the heat generated by the GPU. By introducing the guided airflow from intake to exhaust with powerful fans featuring smart fan control, it allows a 120W GPU to operate at 60°C ambient temperature under 100% GPU loading.

Categories: ,

Description

Ruggedized GPU-Computing Platform Supporting 120W NVIDIA® GPU and Intel® 8th-Gen Core™ Processor

Nuvo-7160GC incorporates rich I/O functions such as USB 3.1 Gen2/ Gen1, GbE, COM and MezIO™ interface in its restricted footprint. It also leverages cutting-edge M.2 NVMe SSD technology for over 2000MB/s disk read/ write speed or Intel® Optane™ memory for the ultimate system acceleration. Neousys Nuvo-7160GC is the ideal solution for emerging edge computing by combining exceptional CPU and GPU performances.

FEATURES

  • Supports NVIDIA® GPU graphics card up to 120W TDP
  • Patented thermal design to allow -25°C to 60°C wide-temperature operation
  • Intel® 8th-Gen Core™ hexa-core 35W/ 65W LGA1151 CPU
  • 6x GigE ports, supporting 9.5 KB jumbo frame
  • M.2 2280 M key socket (Gen3 x4) supporting NVMe SSD or Intel® Optane™ memory
  • 4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports
  • Accommodates two 2.5″ SATA HDD/ SSD with RAID 0/ 1 support
  • Compatible with MezIO™ interface for function expansion
  • Patented ventilation design* for graphics card
nuvo-7160gc-front-side

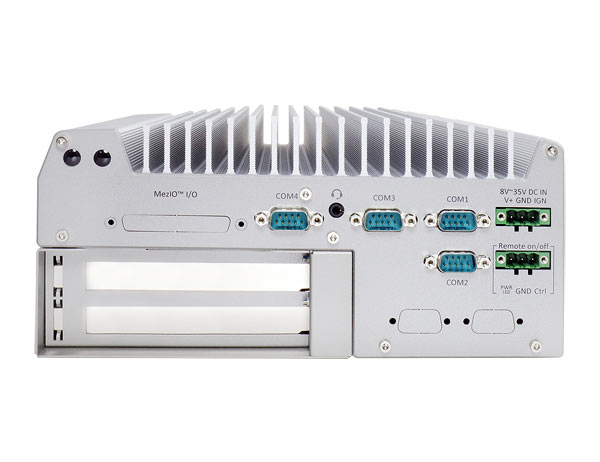

nuvo-7160gc-rear-panel

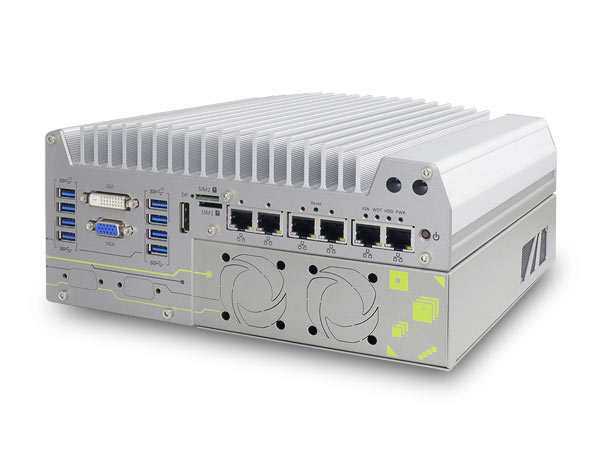

nuvo-7160gc
Previous
Next
nuvo-7160gc-front-side
nuvo-7160gc-rear-panel
nuvo-7160gc
Previous
Next
  • Supports NVIDIA® GPU graphics card up to 120W TDP
  • Patented thermal design to allow -25°C to 60°C wide-temperature operation
  • Intel® 8th-Gen Core™ hexa-core 35W/ 65W LGA1151 CPU
  • 6x GigE ports, supporting 9.5 KB jumbo frame
  • M.2 2280 M key socket (Gen3 x4) supporting NVMe SSD or Intel® Optane™ memory
  • 4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports
  • Accommodates two 2.5″ SATA HDD/ SSD with RAID 0/ 1 support
  • Compatible with MezIO™ interface for function expansion
  • Patented ventilation design* for graphics card

Autonomous
Driving

Machine
Learning

AI
Inference

Virtual
Reality

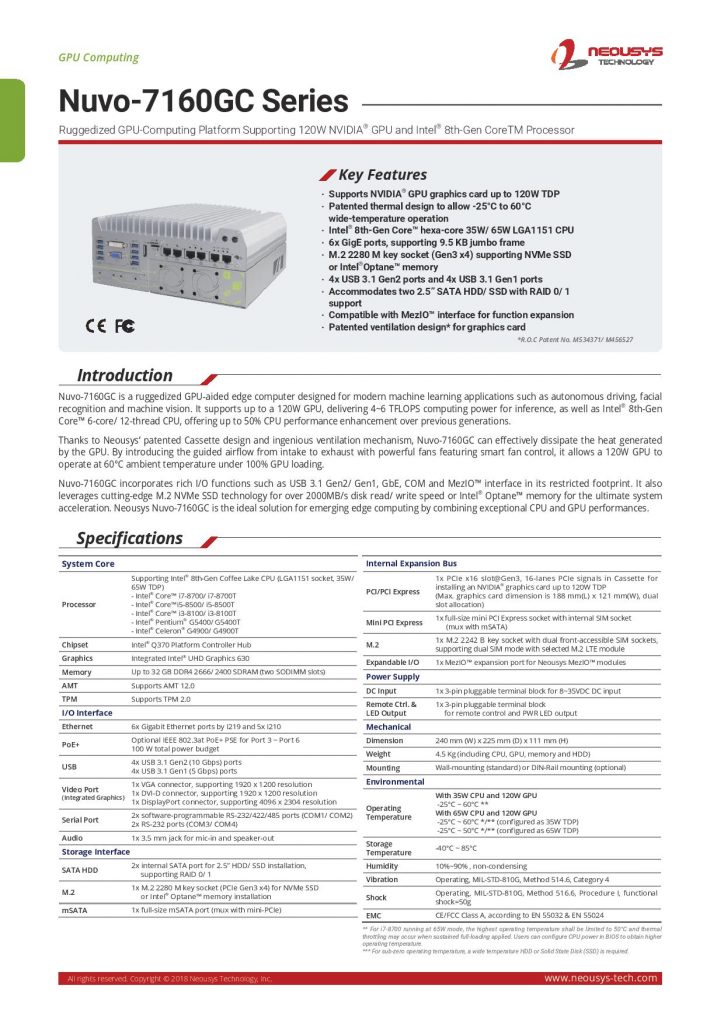

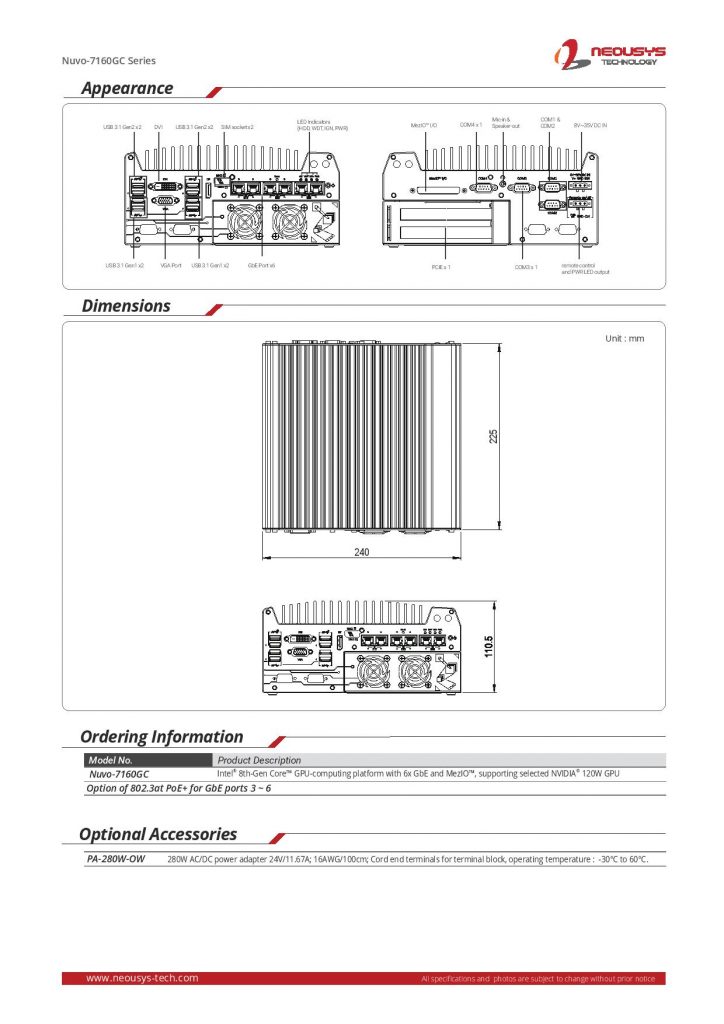

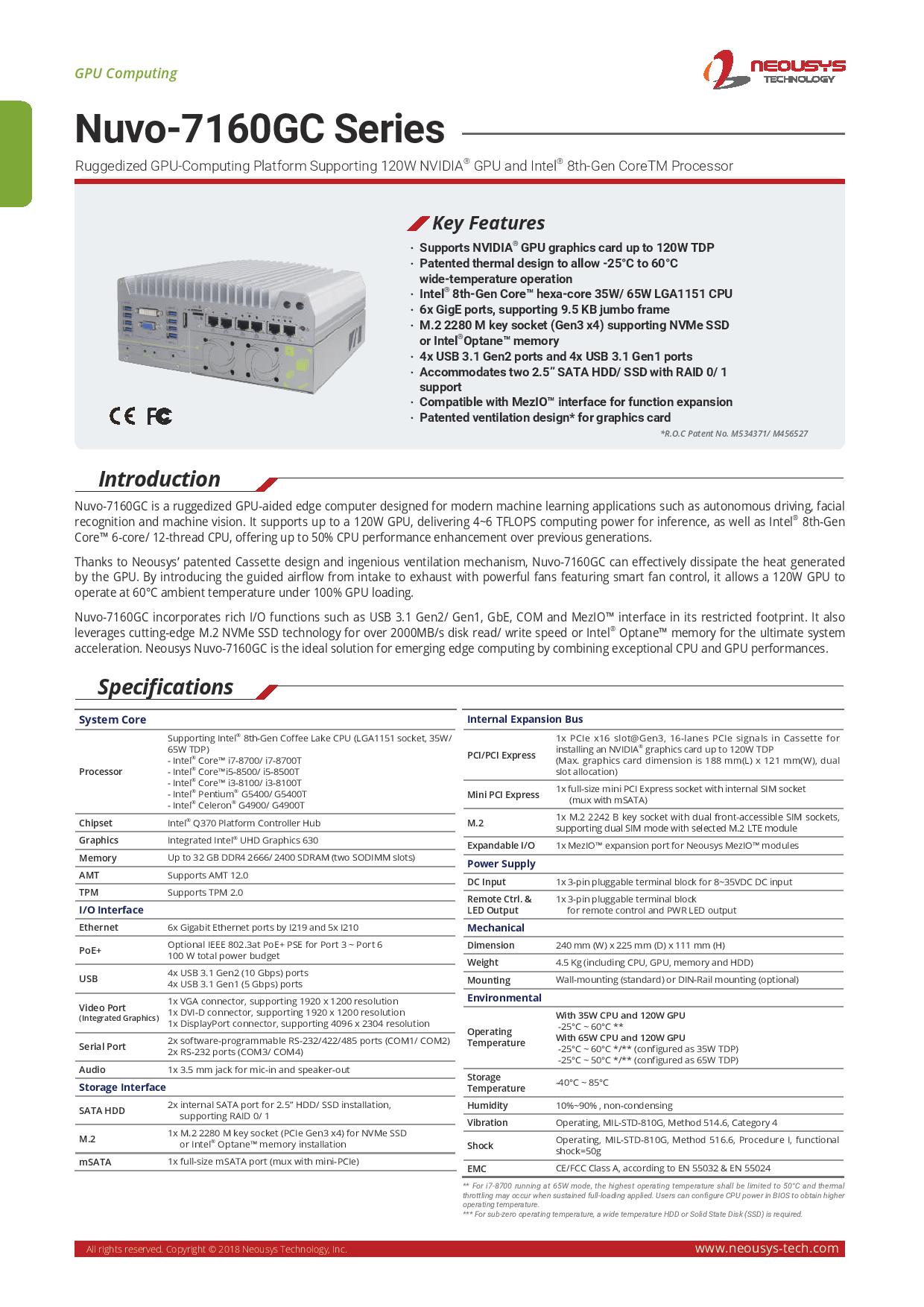

DOCUMENT

DOWNLOAD
