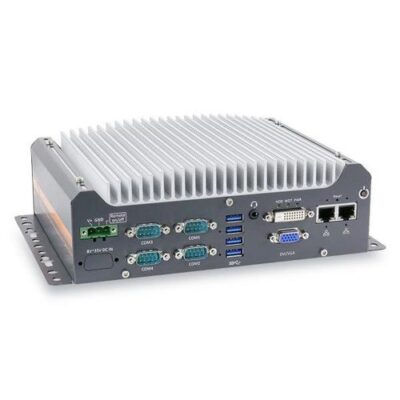

Nuvo-7501

Intel® 9th/ 8th -Gen Core™ i7/i5/i3 Compact Fanless Computer with 2x GbE and 4x COM Ports

  • Compact 255 x 173 x 76 mm footprint
  • Intel® 9th/ 8th-Gen Core™ 35W LGA1151 CPU
  • Rugged, -25°C to 60°C fanless operation
  • 2x GbE and 4x USB3.0
  • 2x RS-232/422/485 and 2x RS-232 ports
  • VGA + DVI dual display outputs
  • Supports 1x M.2 2280 SSD (SATA signal)
  • Supports 1x 3.5″ or 2.5″ SATA HDD/ SSD

Description

Intel® 9th/ 8th -Gen Core™ i7/i5/i3 Compact Fanless Computer with 2x GbE and 4x COM Ports

Nuvo-7501 is a cost-effective, compact and yet powerful fanless embedded computer with a 255 x 173 x 76 mm footprint. Powered by an Intel® 9th/ 8th-Gen Core™ hexa/ octa core CPU, it offers more than 50% computation performance improvement over the previous generation.

Nuvo-7501 is designed to be simple and compact while retaining essential elements of a rugged embedded fanless solution. It features I/Os such as 2x GbE, 4x USB3.0 and 4x COM ports for common industrial applications. In addition to the M.2 2280 SATA slot (SATA signal) and can also support a 2.5″ SSD/ HDD or a 3.5″ HDD. Its’ derivative model, Nuvo-7505D, offers isolated DIO and isolated COM, which can protect the controller against ground loops in harsh environments.

The Nuvo-7501 has retained quality materials all Neousys systems utilize and the design flow/ stringent test procedures it must endure. It is a fanless embedded platform that has hit the sweet spot in terms of cost, size and performance. Nuvo-7501 is an ideal fanless embedded solution for various industrial applications.

PRODUCT HIGHLIGHTS

9th/ 8th-Gen Core i CPU

Powered by Intel® 9th/ 8th-Gen Core™ processor running with advanced Intel® H310 chipset, The Nuvo-7501 fanless embedded computer provides outstanding performance for emerging high-end requirement than 6th & 7th generations.

Wide Temperature Range Operation

The Nuvo-7501 fanless embedded computer has patented passive cooling thermal design that can effectively channel heat from heat sink and truly operate in wide temperature range from -25℃ to 60℃ while under 100% CPU loading.
