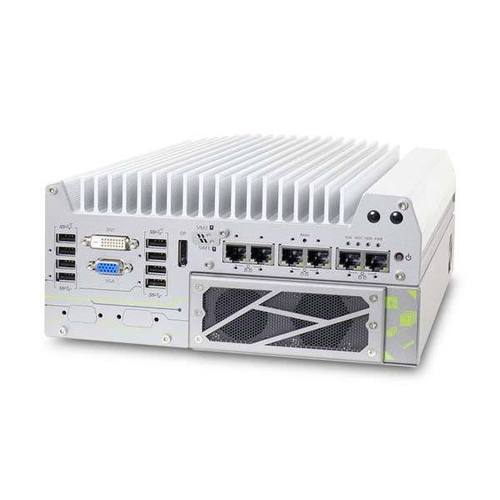

Nuvo-7166GC

Ruggedized GPU computing platform supports NVIDIA® Tesla T4 & Intel® 8th/9th-Gen Core™ processor with dual PCIe

  • Supports NVIDIA® Tesla T4 GPU
  • One additional PCIe x16 slot for add-on card
  • Dedicated heat dissipation for -25°C to 60°C wide-temperature operation
  • Intel® 8th/ 9th-Gen Core™ 35W/ 65W LGA1151 CPU
  • 6x GigE ports, 802.3at PoE+ option available (ports 3~6)
  • M.2 2280 M key NVMe (Gen3 x4) socket for fast storage access
  • 4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports
  • Accommodates two 2.5″ SATA HDD/SSD with RAID 0/1 support
  • MezIO™ interface for easy function expansion

Description

Ruggedized GPU computing platform supports NVIDIA® Tesla T4 & Intel® 8th/9th-Gen Core™ processor with dual PCIe

Nuvo-7166GC is Neousys’ruggedized AI inference platform that features two PCIe slots that supports an NVIDIA® Tesla T4 inference accelerator to provide 8.1 TFLOPS in FP32 and 130 TOPs in INT8 for real-time inference based on trained neural network model. Powered by an Intel® 8th/ 9th-Gen Core™ 6/ 8-core CPU and 64 GB DDR4-2666, it offers optimal balance between CPU, GPU and memory performance.

Nuvo-7166GC utilizes Neousys’ patented Cassette module that has an air tunnel design to guide intake air to flow through the passive heat sink of NVIDIA® Tesla T4. Should you need to install a second performance PCIe card, the Cassette module is also equipped with a second fan to deliver air flow. This cooling design guarantees operating temperatures of up to 60°C with sustained 100% CPU and GPU loading.

The system incorporates cutting-edge I/O technologies to boost overall system flexibility, functionality and performance. It features an M.2 NVMe interface that supports ultra-fast disk access and USB 3.1 Gen2/ GbE/ PoE ports for data input. If that’s not enough, the Cassette module offers an additional Gen3, x8 link PCIe slot for installing a high performance PCIe card or a variety of sensor/ image acquisition cards.

Combining stunning inference performance, powerful CPU and expansion capability, Nuvo-7166GC is a perfect ruggedized platform for versatile edge AI applications.

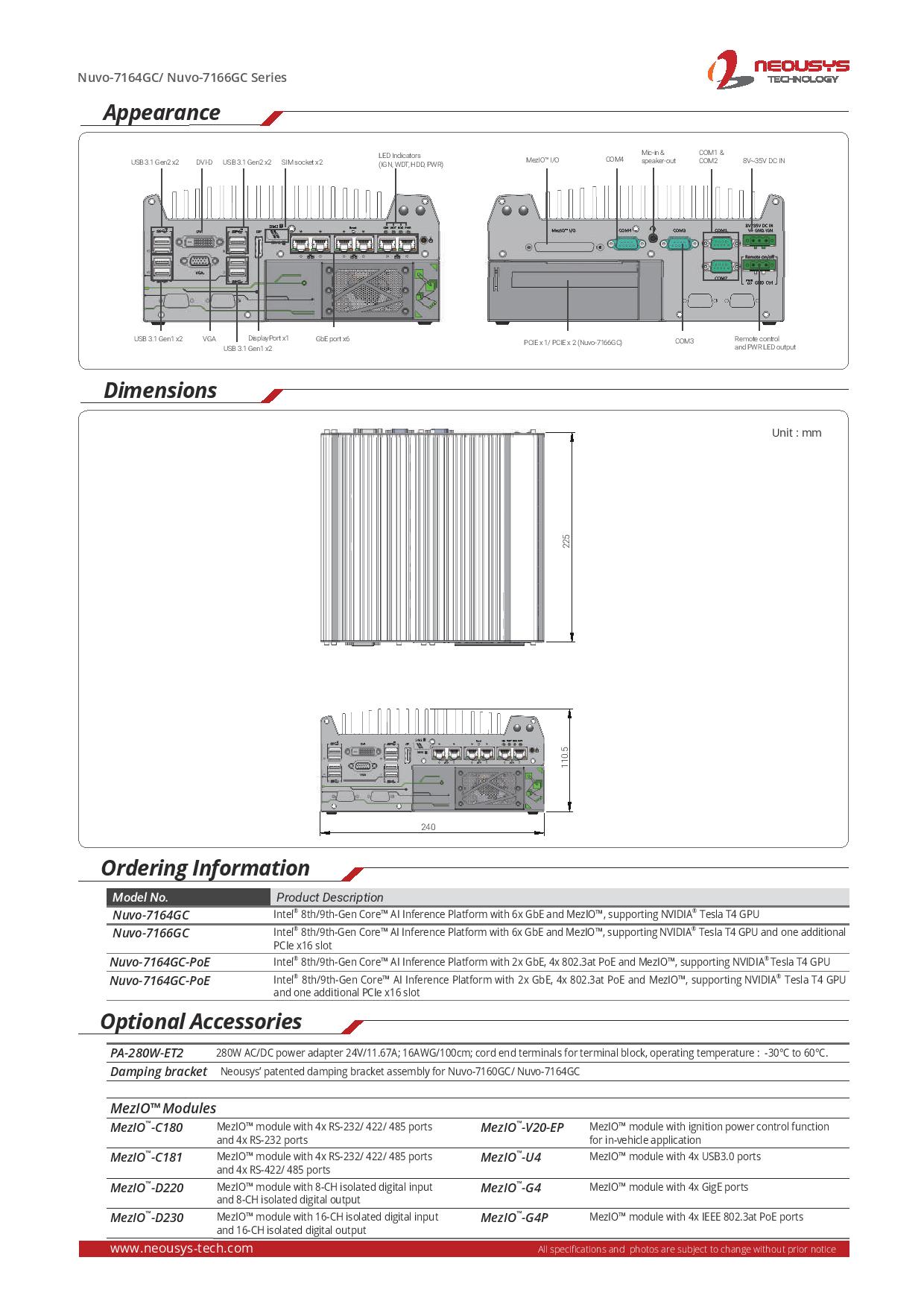

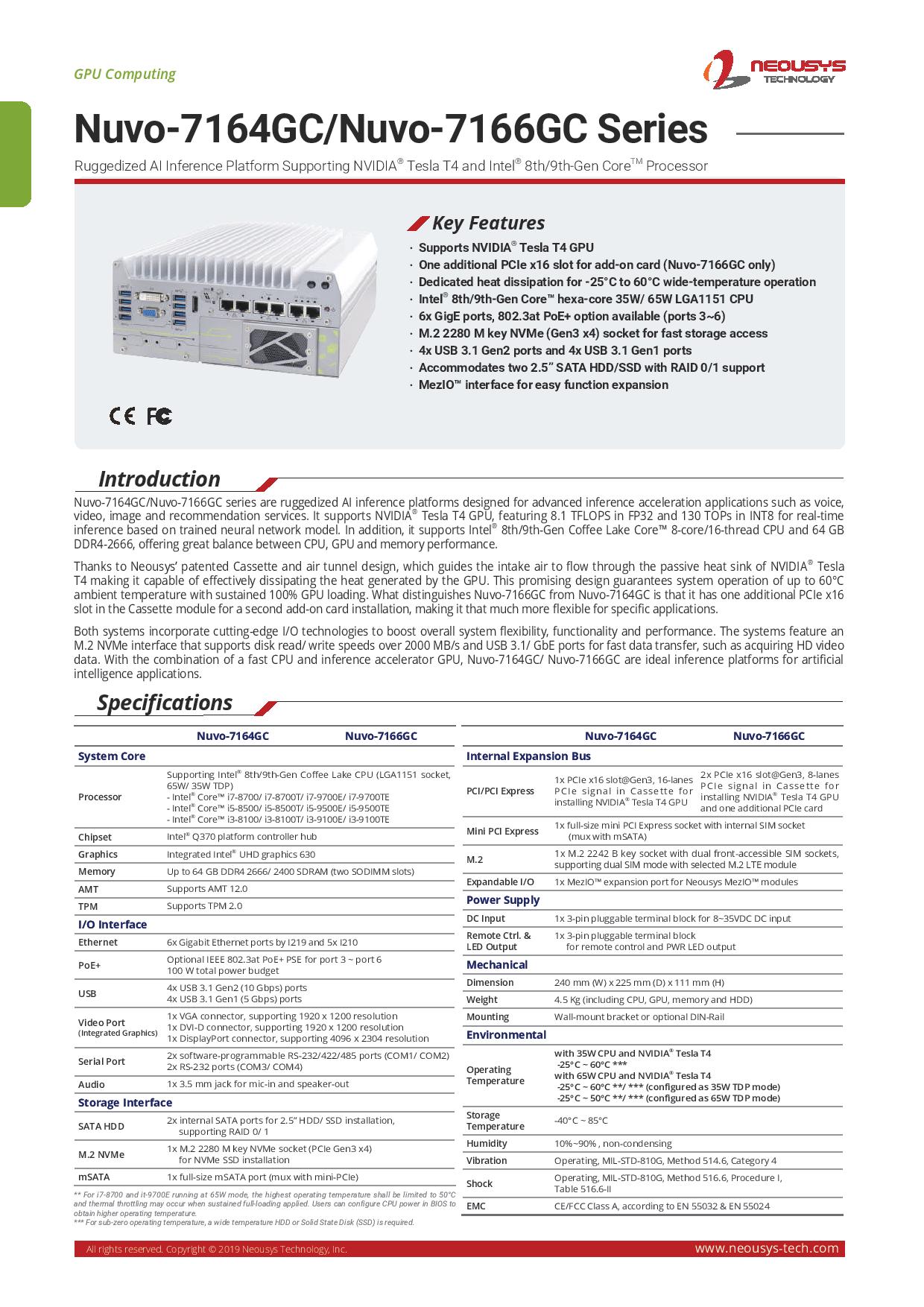

DOCUMENT
