Nuvo-6002

Nuvo-6002 is the perfect replacement for your bulky rack-mount or wall-mount IPC systems. Leveraging 6th-Gen Intel® Skylake platform, It delivers the same computing power as traditional IPCs in a compact form-factor and fanless operation.

Nuvo-6002 supports LGA1151 socket-type CPU, thus you can choose from Core™ i7 to Celeron® depending on your performance needs and budget. Its 2-slot expandability is similar to that of most IPCs. The front-accessible I/O design, including 2 GbE, 4 USB 3.0 and 5 COM ports, makes it easier to access your Nuvo-6002 when it’s placed inside a cabinet or a rack.

Neousys’ proven fanless design on Nuvo-6002 presents extraordinary reliability in all situations and its versatile mounting options make it the ideal solution for desktop, cabinet or a 19″ rack. With similar performance and cost, better form-factor and reliability, Nuvo-6002 speaks for itself!

Description

Intel® 6th-Gen Skylake Core™ i7/i5 fanless embedded computer with 2 PCIe expansion slots

Neousys’ proven fanless design on Nuvo-6002 presents extraordinary reliability in all situations and its versatile mounting options make it the ideal solution for desktop, cabinet or a 19″ rack. With similar performance and cost, better form-factor and reliability, Nuvo-6002 speaks for itself!

Product Highlights

Neousys’ proven fanless design on Nuvo-6002 presents extraordinary reliability in all situations and its versatile mounting options make it the ideal solution for desktop, cabinet or a 19″ rack. With similar performance and cost, better form-factor and reliability, Nuvo-6002 speaks for itself!

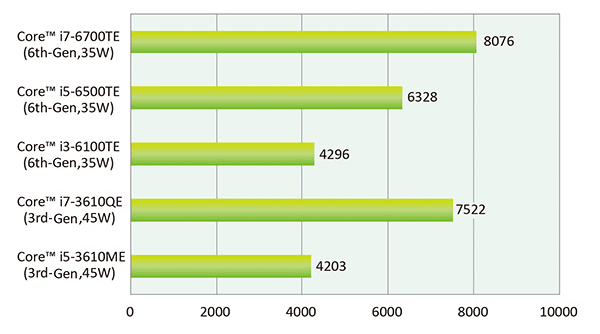

6th-Gen Core™ i Skylake Platform

Nuvo-6002 features Intel® 6th-Gen Core™ desktop processor to deliver the same computing power as conventional 19” IPC. With socket-type CPU support, it allows users to flexibly select a CPU, from entry-level Celeron® to high-end Core™ i7, according to ones performance demand and budget.

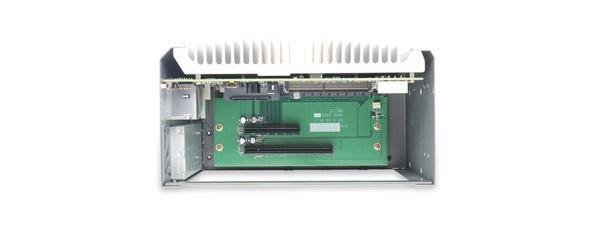

Dual PCIe Slots

Nuvo-6002 offers up to two PCIe slots in its compact chassis to deliver the same level of expandability as off-the-shelf IPCs. Users can install a wide variety of I/O, communication, vision and motion cards for versatile applications.

Versatile Mounting Options

For ease of deployment and setup, Nuvo-6002 is designed with multiple mounting mechanisms. You can place it in a cabinet using wall-mounting brackets, or fix it to a DIN rail with optional DIN-mounting clip. The rack-mounting kit allows two Nuvo-6002 units installed in a rack using the same space as a 4U, 19″ IPC.

Versatile Mounting Options

For ease of deployment and setup, Nuvo-6002 is designed with multiple mounting mechanisms. You can place it in a cabinet using wall-mounting brackets, or fix it to a DIN rail with optional DIN-mounting clip. The rack-mounting kit allows two Nuvo-6002 units installed in a rack using the same space as a 4U, 19″ IPC.

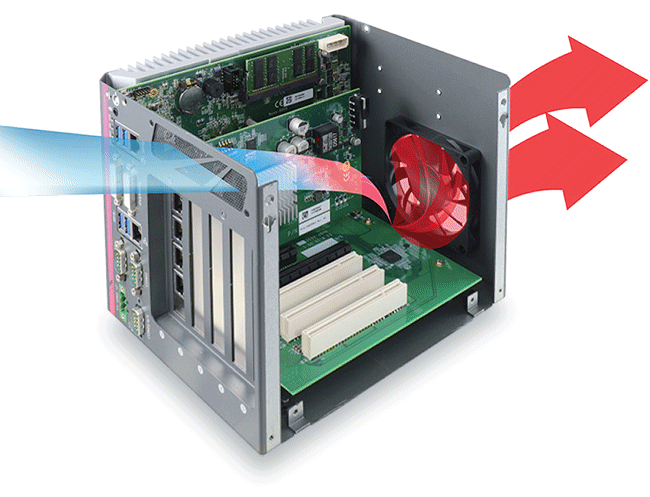

Regulated Air Flow for Add-on Cards

When add-on cards are installed, it is crucial to maintain a reasonable temperature inside the chassis.

Nuvo-6002 has well-designed air inlet apertures and an optional smart fan to create regulated air flow through all cards. The design effectively brings out the heat and significantly increases system reliability.

Regulated Air Flow for Add-on Cards

When add-on cards are installed, it is crucial to maintain a reasonable temperature inside the chassis.

Nuvo-6002 has well-designed air inlet apertures and an optional smart fan to create regulated air flow through all cards. The design effectively brings out the heat and significantly increases system reliability.
