Nuvo-5095GC

Nuvo-5095GC opens a new chapter for industrial computers. As the first embedded controller targeted at emerging applications of CUDA computing, Autonomous, AI inference and virtual reality, Nuvo-5095GC has all the features required for a compact, reliable and powerful GPU-computing platform.

Supporting 75W nVidia® GPU, Nuvo-5095GC possesses 768 CUDA cores to deliver tremendous computing power for arithmetic/graphics operations. Neousys’ patented Cassette technology and an innovative thermal design help to effectively dissipate heat generated by the GPU, thus making this compact system capable of operating reliably at 60°C under 100% GPU load.

Description

Compact and wide-temperature GPU-computing platform supporting 75W nVidia® GPU and Intel® 6th-Gen Core™ processor

Nuvo-5095GC is based on Intel® Skylake platform, supporting 35W/65W 6th-Gen ® Core™ processors and up to 32GB of DDR4 memory. It offers rich I/O functions, such as GbE, USB 3.0 and COM ports to connect to external devices. All these features are integrated into a compact, 240 x 225 x 110 mm footprint. For fast-growing GPU-computing applications, Nuvo-5095GC presents the first industrial-grade, compact and rugged platform incorporating CPU and GPU to offer performances far beyond traditional industrial computers.

FEATURES

  • Supports nVidia® GPU with up to 75W TDP
  • Patented thermal design to allow -25°C to 60°C wide-temperature system operation
  • Supports 6th-Gen Intel® Core™ i7/i5 LGA1151 CPU
  • 6x Gigabit Ethenet ports
  • Supports 9.5 kB jumbo frame
  • Up to 32 GB, DDR4-2133 SODIMM
  • 240 mm x 225 mm x 111 mm compact footprint
  • Compatible with MezIO™ interface for function expansion
  • Accommodates two 2.5″ SATA HDD/SSD with RAID 0/1 support
  • Patented ventilation hole* for graphic card
  • Supports nVidia® GPU with up to 75W TDP
  • Patented thermal design to allow -25°C to 60°C wide-temperature system operation
  • Supports 6th-Gen Intel® Core™ i7/i5 LGA1151 CPU
  • 6x Gigabit Ethenet ports
  • Supports 9.5 kB jumbo frame
  • Up to 32 GB, DDR4-2133 SODIMM
  • 240 mm x 225 mm x 111 mm compact footprint
  • Compatible with MezIO™ interface for function expansion
  • Accommodates two 2.5″ SATA HDD/SSD with RAID 0/1 support
  • Patented ventilation hole* for graphic card

World's First Wide-temperature GPU Computer

Nuvo-5095GC is a compact embedded controller supporting 75W nVidia® GPU, 6th-Gen Intel® Core™ processor and features wide-temperature operation from -25°C to 60°C under 100% GPU load.

World's First Wide-temperature GPU Computer

Nuvo-5095GC is a compact embedded controller supporting 75W nVidia® GPU, 6th-Gen Intel® Core™ processor and features wide-temperature operation from -25°C to 60°C under 100% GPU load.

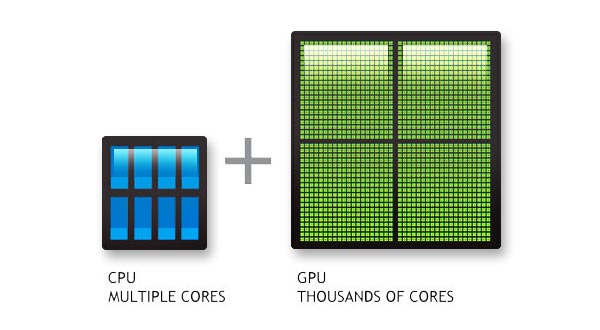

GPU-computing Applications

Nuvo-5095GC incorporates both CPU and high-end GPU. It is the first embedded controller targeted at emerging applications of CUDA computing, autopilot, deep learning and virtual reality.

GPU-computing Applications

Nuvo-5095GC incorporates both CPU and high-end GPU. It is the first embedded controller targeted at emerging applications of CUDA computing, autopilot, deep learning and virtual reality.

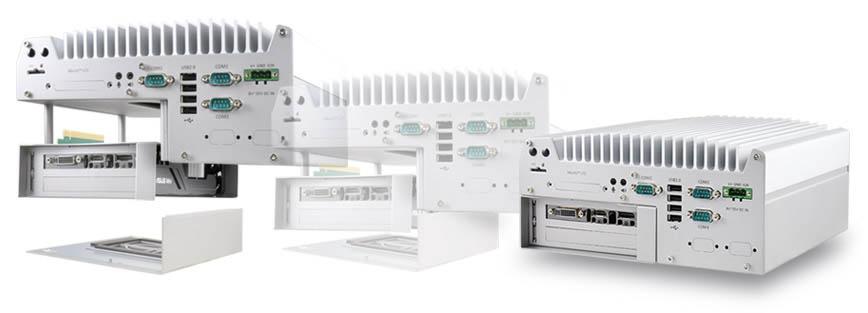

Innovative System Design

Nuvo-5095GC leverages Neousys’ patented Cassette to avoid thermal interference between CPU and GPU compartment. A patented mechanical design that creates a sealed, separated tunnel for air intake to GPU.

Innovative System Design

Nuvo-5095GC leverages Neousys’ patented Cassette to avoid thermal interference between CPU and GPU compartment. A patented mechanical design that creates a sealed, separated tunnel for air intake to GPU.

Autonomous
Driving

Machine
Learning

AI
Inference

Virtual
Reality
