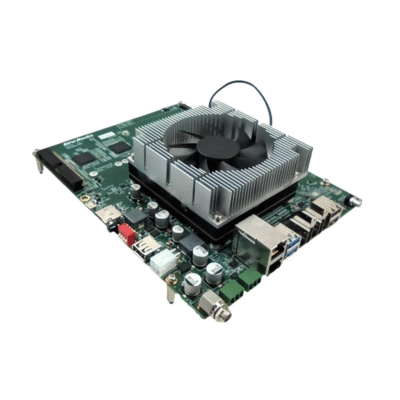

AVerMedia Jetson AGX Xavier D313AX

D313AX Development System

  • Equipped with the NVIDIA Jetson AGX Xavier™ 32GB module and FAN
  • 2 x M.2 Key M 2280 or 3x mPCIe alternatively
  • 1 x M.2 Key E 2230 for Wi-Fi module
  • 1 x M.2 Key M 2280 for NVMe
  • 2 x GbE RJ45, 2x USB 3.0, 2x 4Kp60 HDMI output
  • 1 x CAN bus with transceiver
  • 40 pins Expansion Header
  • Wide input voltage: 12~54V DC Input
  • Easy to use with expansion I/O on one side.
  • Operating temperature: -20°C ~ 85°C
  • Dimension: W: 170mm x L: 220mm
Category:

Description

D313AX Development System

AVerMedia’s D313AX development system is ideal for AI-centric applications such as robotics, smart manufacturing, and much more. This dev system includes a variety of IO ports to support a wide range of sensors for your current project and to future-proof any ideas you may have.

This dev system also supports the NVIDIA JetPack™ and DeepStream SDKs, as well as CUDA®, cuDNN, and TensorRT™ software libraries. These tools are required for speedy deployment.

Key Industries

AVerMedia devices are built with flexibility in mind and are designed for the following verticals.



Robotics

Perform critical tasks with the vision of a human-like ability to detect or recognize different objects.

Smart Manufacturing

Smart manufacturing delivers more productivity while enabling safer work environments.

Smart City

Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations fora variety of services.

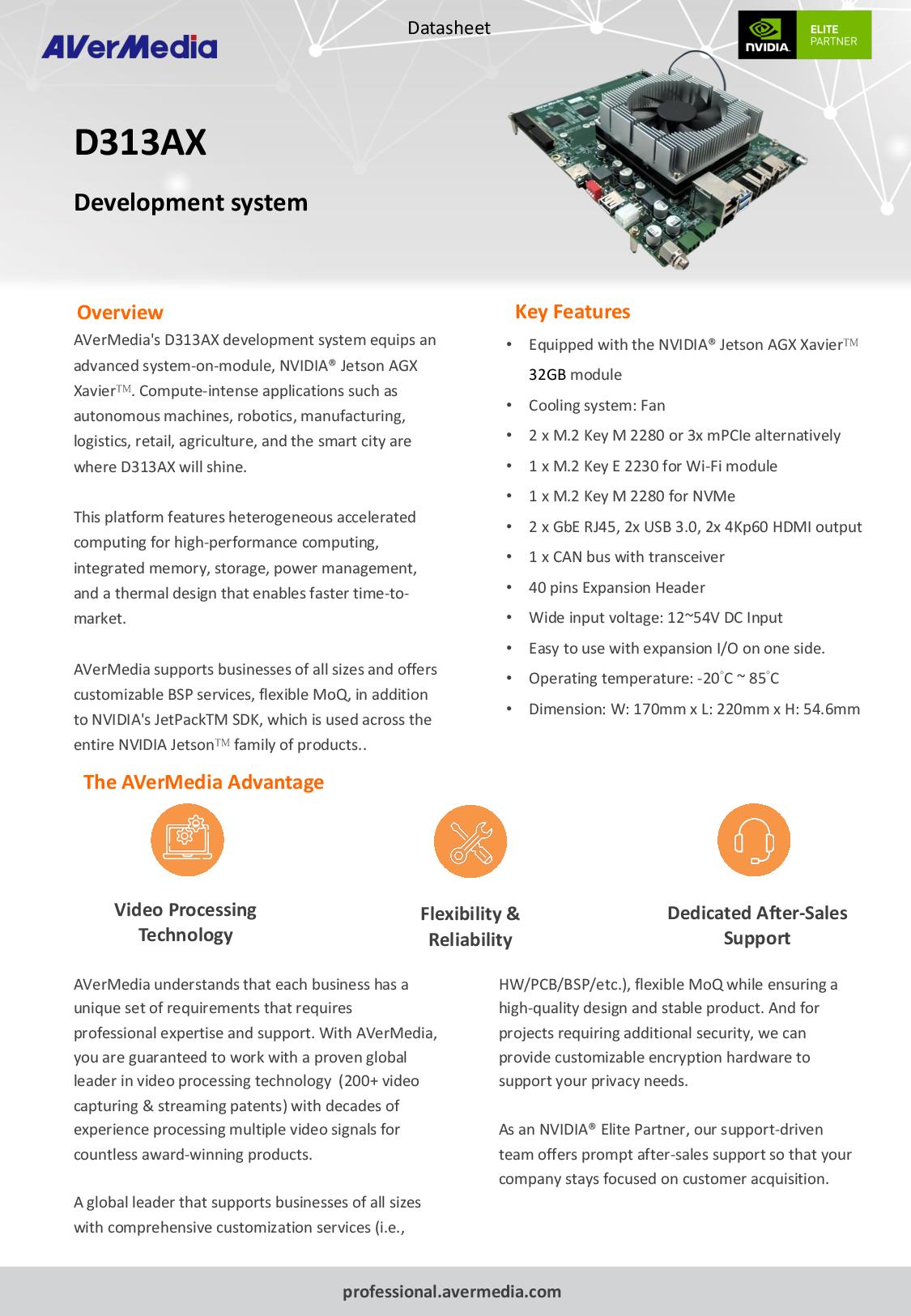

DOCUMENT

DOWNLOAD
